HF128 Rotary Drilling Rig
- Drilling Diameter: 600-1500mm
- Drilling Depth:43m
- Engine Power:113kW
- Rotary Torque:125KN.m
Features
- 1Low price,with the same funtion,our price is a quarter of similar products' in the market,on the other hand,we have lower rate of depreciation.
- 2Low cost production, helped by excellent energy saving design.We have the best fuel economy than other companies and reduce construction cost greatly.Normal soil condition with around 12-16 liters per hour.
- 3 Low cost maintenance. Considering maintenance cost,we use most components of high quality and low price in the market. Mainparts of products in dependent research ,so the maintenance cost is low.
- 4 Multi fuctions use.Upto thirty percent faster than static pressing pilling machine,convenient loading and unloading,free conversion of three models and easy to transportation.
- 5Simple operation,wide practicability.Using integrated hand control,and movements has a corresponding display in the dashboard,as plain as print,simple operation .In addition,equipment can suit not only large infrastructure construction,but also can general building.
- 6Simple transportation and installation,Using former-type mast,when transportion drop forward,then fold or indented and onto flat truck directly.Adopting unique design of mast,power head and forehead,easily loading onto flat truck with main machine.
- 7Compact structrue,saving space. Due to the special design of mast, great improve on drilling bucket, unloaded soil space greater,quantity of unloaded soil become more, save operate space and time.
TECHNICAL DATA
Drilling diameter |
600—1400mm |
|
Drilling depth |
40(Friction)/30(Machine lock)m |
|

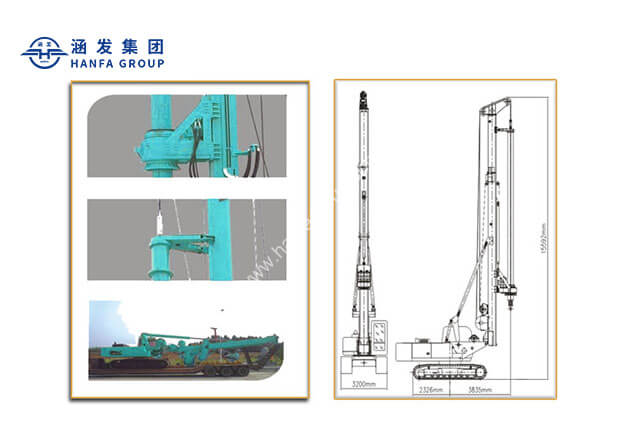

Overall measurement |
Working dimentions |
7435mm×3200mm×15632mm |
Transport dimentions |
15005mm×3200mm×3417mm |
|
Machine weighth |
36000kg |
|
Engine | Model |
Cummins QSB7 (National phase III emissions) |
Rated power | 124/2000KW/rpm |
|
Type |
Pressurization, electric jet |
|
Dynamic force head |
Rotary drive torque |
125KN.m |
Rotation speed |
5-30r/min |
|
Crowed clinder |
Max. push |
120KN |
Max.pull |
100KN |
|
Max. stroke |
3m |
|
Main winch |
Max. pull |
120KN |
Max. speed |
70m/min |
|
diameter of wire rope | 24mm |
|
Auxilary winch | Max. pull |
40KN |
Max. speed |
50m/min |
|
diameter of wire rope |
16mm |
|
Mast inclination |
Free adjustment forwares/backwares |
0-100degree |
Free adjustment left/right wards |
±3degree |
|
Chassis |
Max.travel speed |
3km/h |
Maximum climbing slope |
40% |
|
Min. ground clearance |
400mm |
|
Track width |
700mm |
