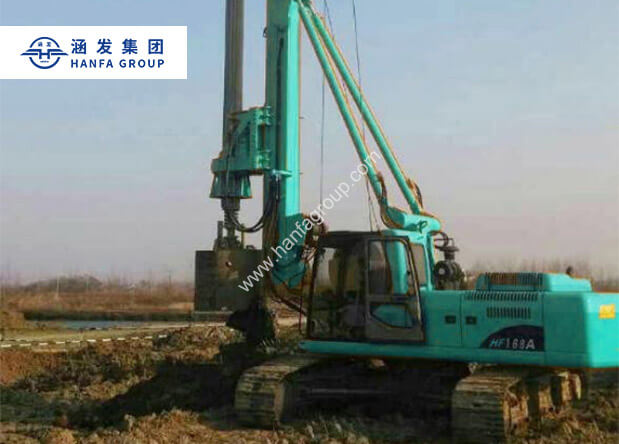

HF168A Rotary Drilling Rig
- Drilling Diameter: 600-1600mm
- Drilling Depth:44/56m
- Engine Power:133kW
- Rotary Torque:80/165KN.m
Features
- 1Low price,with the same funtion,our price is a quarter of similar products' in the market,on the other hand,we have lower rate of depreciation.
- 2Low cost production, helped by excellent energy saving design.We have the best fuel economy than other companies and reduce construction cost greatly.Normal soil condition with around 12-16 liters per hour.
- 3Low cost maintenance. Considering maintenance cost,we use most components of high quality and low price in the market. Mainparts of products in dependent research ,so the maintenance cost is low.
- 4Multi fuctions use.Upto thirty percent faster than static pressing pilling machine,convenient loading and unloading,free conversion of three models and easy to transportation.
- 5Simple operation,wide practicability.Using integrated hand control,and movements has a corresponding display in the dashboard,as plain as print,simple operation .In addition,equipment can suit not only large infrastructure construction,but also can general building.

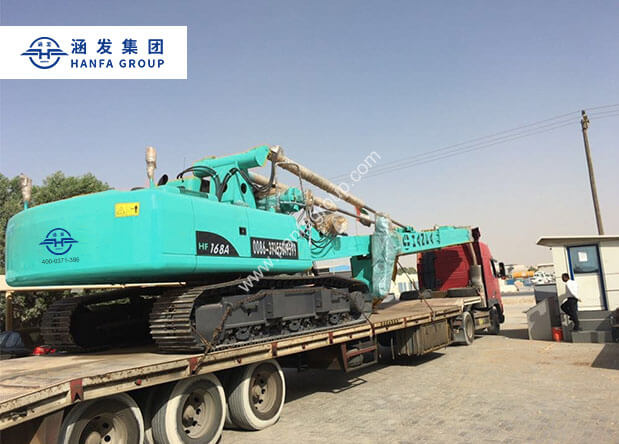

- 6Simple transportation and installation,Using former-type mast,when transportion drop forward,then fold or indented and onto flat truck directly.Adopting unique design of mast,power head and forehead,easily loading onto flat truck with main machine.
- 7Compact structrue,saving space. Due to the special design of mast, great improve on drilling bucket, unloaded soil space greater,quantity of unloaded soil become more, save operate space and time.
Application
TECHNICAL DATA
| Technology Data | HF168A | ||
| Drilling diameter | mm | 600-1600 | |
| Max. drilling depth | m | 44/56 | |
| Overall measurement | Working dimentions | mm | 7630X3710X18572 |
| Transport dimentions | mm | 15189X2910X3173 | |
| Rotary drive torque | KN.m | 80/165 | |
| Rotation speed | rpm | 24/12 | |
| Crowd cylinder | Max. push | KN | 150 |
| Max. pull | KN | 100 | |
| Max. stroke | mm | 3000 | |
| Main winch | Max. line pull | KN | 120 |
| Max line speed | m/min | 70 | |
| Auxiliary winch | Max. line pull | KN | 60 |
| Max line speed | m/min | 50 | |
| Engine | Rated power | KW | 133 |
| type | B5.9-C Cummins (U.S.A) | ||
| Electronic Managagement System | Long distance monitor system | Available | |
| Drilling record system | Available | ||
| On car printer | Available | ||
| Hydraulic system pressure | bar | 300 | |
| Chassis | Chassis modality | Fixation | |
| Max. travel speed | km/h | 2.0km/h | |
| Min ground clearance | mm | 500 | |
| Track width | mm | 700 | |
| Mast inclination | Free adjustment forwards / backwards | 0-93° | |
| Free adjustment left / right wards | ±3° | ||
| Machine Weight | kg | 38500 | |
