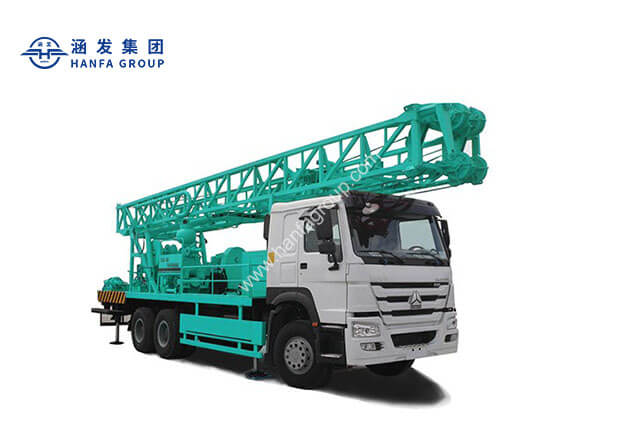

HFC-400 Truck Mounted Water Well Drill Rig
- Drilling Diameter: 500mm
- Drilling Depth:420m
- Engine Power:118kW
- Rotary Torque:60000N.m
Features
- 1 Sinotruck, 6X6 drive.
- 2Drill diameter 500mm (20inches) and drill depth 420m.
- 3BW900 mud pump, fast to clean holes.
- 4One month overseas service by experienced engineer FOR FREE.
- 5One year quality warranty.

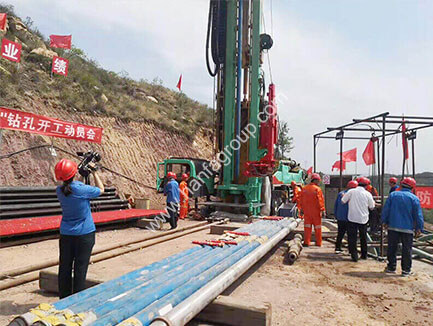

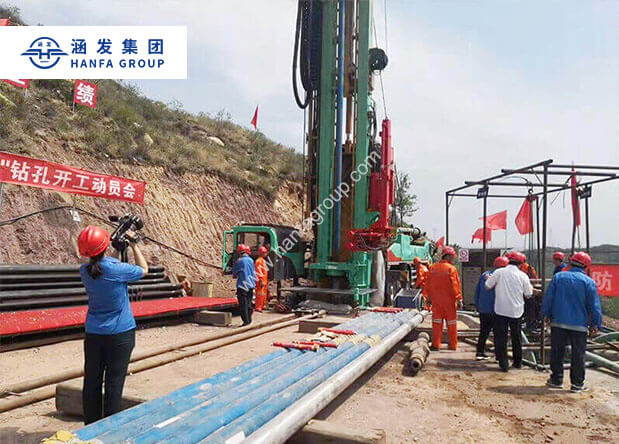

- 6Widely used in tough environments: deserts in Africa, remote areas in China, plateau in South America, etc.
Application
TECHNICAL DATA
| Drilling capacity | Moving force | BF6L913G55 or 6135AN |
| Hole depth | 420m | |
| Diameter max | 500mm | |
| Drill rod | 89mm x 10mm x 6000mm / 73mm x 9mm x 6000mm | |
| Max. turntable diameter | 505mm | |
| Active Kelly | 108mm x 108mm x 7315mm | |
| Drill tower | Effective height | 11m |
| Hook rated load | 25t | |
| Hoisting system | 3 x 4 | |
| Dimensions for transport | 12600mm x 2500mm x 4230mm | |
| Weight | 24t | |
| Power | model | BF6L913G55 |
| name | intercooled turbocharged diesel enine | |
| Cylinder diameter | 102 x 125mm | |
| Power | 118kw / 2500r/min | |
| Max. torque | 555N.m / 1600r/min | |
| Transmission box | Output speed | 1107r/min |
| Chain box | Input speed | 1107 r/min |
| Output speed | 964r/min | |
| Gearbox | Input speed | 1107r/min |
| Double hydraulic cylinder-cable driving mechanism | Pressure capacity | 196000N |
| Reduce pressure capacity | 135000N | |
| Decompression strock | 7.6m | |
| Unloading pipe cylinder | Strock | 185mm |
| Cylinder inside diameter | 110mm | |
| Rated torque | 60000N.m | |
| Mud pmp BW900 | Max. pressure | 2.5Mpa |
| Max. displacement | 900L/min | |
| Hydraulic pump | Type | GPC4-50 |
| Displacement | (cm3/r) 52.5 |
