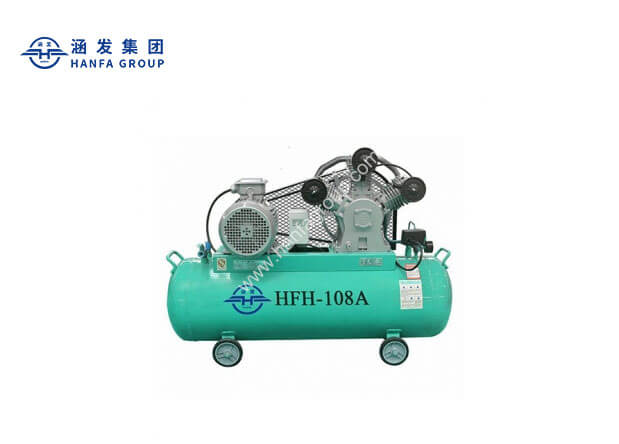

HFH Series Mine Piston Type Air Compressor
- Air Displacement: 0.17~0.9M3/min
- Air Pressure:0.8MPa
- Crankshaft:870~1000rpm
- Cylinder Dia:51~90mm
Features
- 1Structure optimization, beautiful appearance:
- Smooth lines, avant-garde shape design, reasonable layout of the components, compact structure;
- 2Low noise:
- Professional valve and flow channel design, with efficient intake muffler, noise pollution to a minimum;
- 3High performance:
- Innovative optimized design, precision machining, large displacement, low power consumption;
- 4High reliability:
- Aluminum cylinder, crankcase, better heat dissipation, low oil temperature and exhaust temperature; The key parts are precisely machined by import processing center. All type 0 ring seal, prevent oil leakage, gas leakage; Large capacity gas storage tank, reduce motor starting times, improve motor reliability;
- 5Customized motor:
- Supporting the development of special motor, starting torque, low temperature rise, long life;Energy conservation and environmental protection: Meet the national second-level energy efficiency requirements, save energy, reduce operating costs.
- 6Cylinder:
- Bimetal structure, boron cast iron cylinder liner wear, aluminum cylinder body heat dissipation better and beautiful.
- 7Air valve:
- Adopts high efficiency tongue valve structure;Valve plate using Swedish valve plate steel, long life.
- 8Crankcase:
- Aluminum die-casting, beautiful, light weight, good heat dissipation;Into the processing center to complete the clamping of all processing, processing accuracy is high.
- 9Crankshaft:
- Adopt the snake crankshaft, the structure is simple, the optimal design, the vibration is small;
- 10O-ring:
- The sealing surface of the main engine is sealed with a reliable and environmentally friendly 0-ring to prevent leakage.
TECHNICAL DATA
|
Model Parameters |
Unit |
HFH-208AT/S |
HFH-308AT/S |
HFH-408AT/S |
HFH-558A |
HFH-758A |
HFH-108A |
|
Air Delivery |
M3/min |
0.17 |
0.25 |
0.36 |
0.45 |
0.67 |
0.9 |
|
Air Pressure |
MPa |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Crankshaft |
rpm |
870 |
960 |
1140 |
1020 |
1000 |
1000 |
|
Cylinder No. |
2 |
2 |
2 |
3 |
2 |
3 |
|
|
Cylinder Dia. |
mm |
51 |
55 |
65 |
65 |
90 |
90 |
|
Piston Stroke |
mm |
46 |
50 |
60 |
60 |
60 |
60 |
|
Air Tanks |
L |
60 |
90 |
100 |
120 |
170 |
170 |
|
Motor Power |
KW |
1.5 |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
Whole Weight |
KG |
60 |
70 |
83 |
105 |
148 |
160 |
|
Length |
mm |
880 |
980 |
1070 |
1210 |
1360 |
1360 |
|
Width |
mm |
350 |
380 |
380 |
380 |
500 |
500 |
|
Height |
mm |
680 |
800 |
840 |
870 |
980 |
980 |
