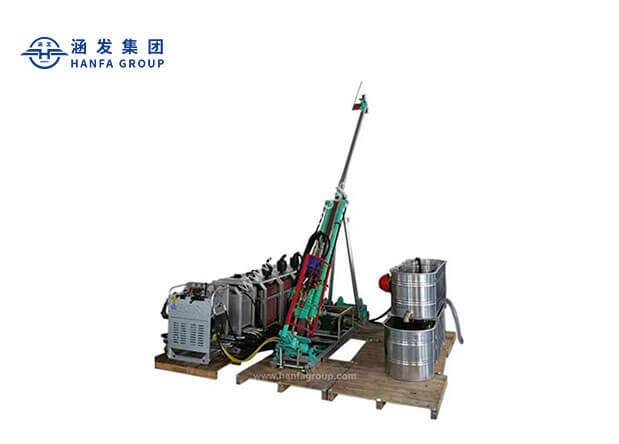

HFP600 Plus Portable Core Drill Rig
- Drilling Diameter: 96/75.7/60mm
- Drilling Depth:160/460/800m
- Engine Power: 4×23.5kW
- Rotary Torque:650N.m
product Introduction
HF600 Plus, the most powerful one of HAFNA HFP series portable full-hydraulic core drilling rigs, is mainly used for drilling boreholes of 500-800m in depth. Enjoying good portability and strong force as specially designed for inaccessible areas and complex strata, it can even drill through extremely fractured strata quickly with HANFA series formulated mud.
1. It is equipped with an original and customized and manual Parker multi-way reversing valve to ensure precise control.
2. It is equipped with an independently developed hydraulic modular valve block, so the hydraulic system is highly integrated and reliable
3. It is controlled remotely with an engine to ensure convenient operation.
4. Equipped with a proprietary three-cylinder holder, it can directly pass through drill rods with an inlet diameter of No. P, No. H, No. N and No. B.
Features
- 1Increased capability 30%.
- 2Optimized hydraulic system, operationstation, oil tank and modules.
- 3 Improved working area.
- 4Brand-new rod holder with increased strength,wider applications and easier adjustment enhanced adapt ability.

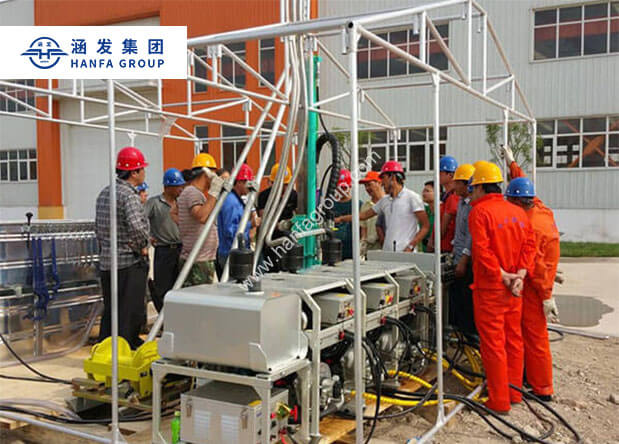

Application
TECHNICAL DATA

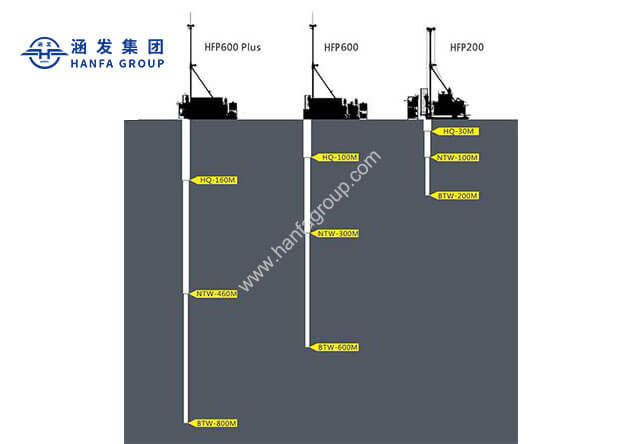

| Drilling depth capacity | HQ/NTW/BTW Rod Length 1.5m | 160/460/800m |
| Hole Diameter | 96/75.7/60mm | |
| Core Diameter | 63.5/56/42mm | |
| Power engine | KUBOTA D1105.T,4×23.5KW/3000RPM | |
| Hydraulic system | American Parker valve,water cooler | |
| Maximum pressure 21Mpa/max,Maxium flow 160L/min | ||
| Top drive rotation head | Maximum torque | 650N.m |
| Maximum rotation speed | 1300rpm | |
| Feed travel | 1.83m | |
| Pull/Thrust | 50KN/30KN(Single cylinder) | |
| Winch | Average speed | 150m/min |
| Pulling Force | 700kg | |
| Wire Rope Diameter | 5mm | |
| Rope Capacity | 900m | |
| Mast | Height of the mast on 90 degree | 5m |
| Drilling angle | 45º-90º(standard ) | |
| Size and weight | Platform area/Module quantity | 4m×4m×5m/13 PCS |
| Gross/Maximum module | 1500kg/180kg | |
