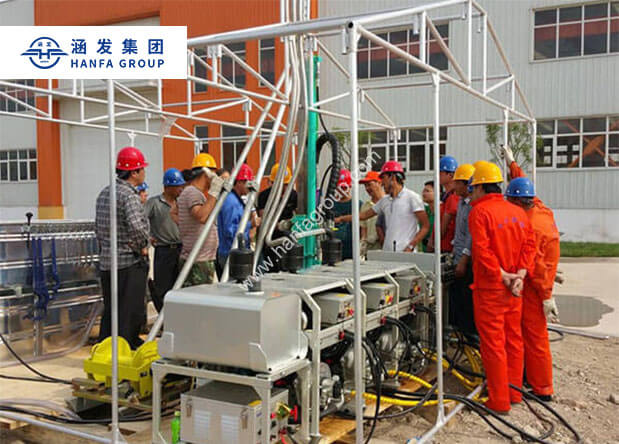

HFP600 Portable Hydraulic Core Drilling Rig

Drilling Diameter: 96/75.7/60mm
Drilling Depth:100/300/600m
Engine Power:23.5kW
Rotary Torque: 650N.m

product Introduction

HFP600 portable hydraulic core drilling rig is a new generation of deep hole drilling rigs, vertical shaft drilling rig replacement products

Features

  • 1Easy to access, easy to assemble/disassemble, high efficiency.
  • 2 Light weight and portable.
  • 3Modulized design with the heaviest module weighing only 180kg, able to be carried by only four persons.
  • 4Masts rig with the capability of drilling from an angle of 45 to 90 degree. No tower is needed.
  • 5Light weight machine with 80% of the framework being made of high-strength aluminum alloy materials.

Application

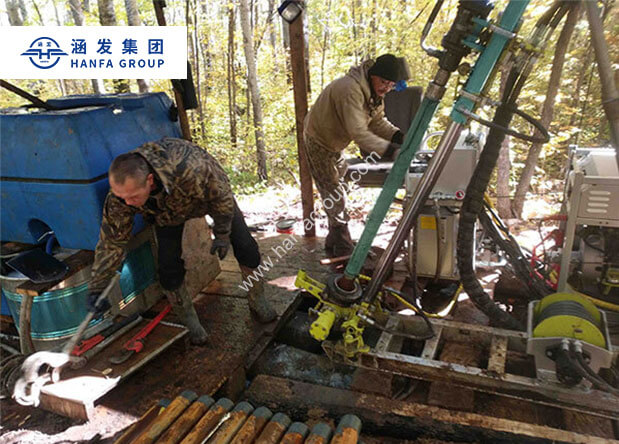

With high efficiency and easy assembling capability, HFP600 portable core drilling rig has been widely used for mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydropower project, tunnel exploration and geographical investigation. It works particularly well in areas with complex geographic characteristics such as mountainous region, forest and plateau. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.

TECHNICAL DATA

Drilling depth capacity HQ/NTW/BTW 100/300/600m
Hole Diameter Rod Length 1.5m 96/75.7/60mm
Core Diameter 63.5/56/42mm
Power engine KUBOTA D1105.T, 3×23.5KW/3000RPM
Hydraulic system American Parker valve,water cooler
Maximum pressure 21Mpa/max, Maximum flow 160L/min
Top drive rotation head Maximum torque 650N.m
Maximum rotation speed 1300rpm
Feed travel 1.83m
Pull/Thrust 50KN/30KN(Single cylinder)
Winch Average speed 150m/min
Pulling Force 700kg
Wire Rope Diameter 5mm
Rope Capacity 650m
Mast Height of the mast on 90 degree 5m
Drilling angle 45º-90º(standard )
Size and weight Platform area/Module quantity 4m×4m/12 piece
Gross/Maximum module 1150kg/180kg
