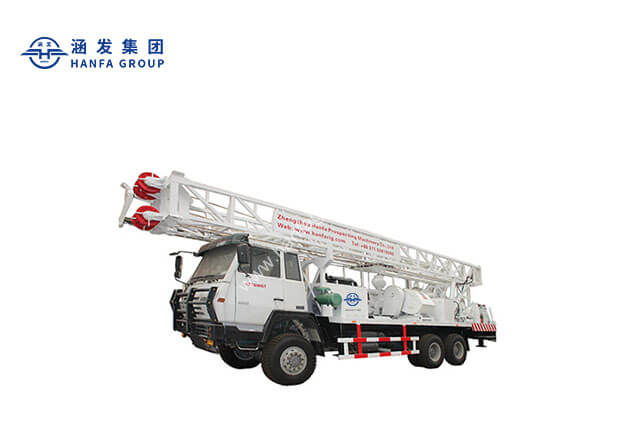

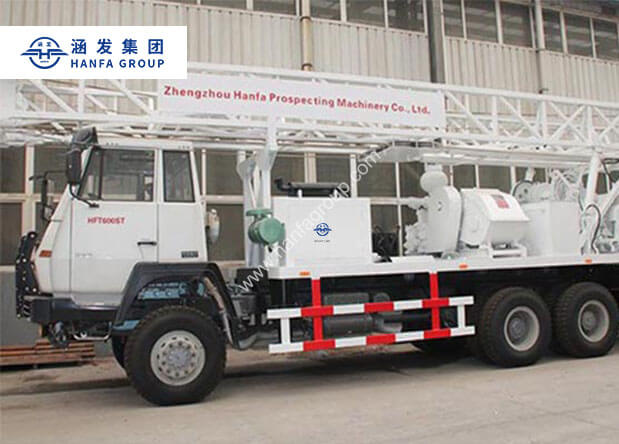

HFT600ST Truck Mounted Water Drilling Rig
- Drilling Diameter: 190-500mm
- Drilling Depth:620m
- Engine Power:141kW
- Rotary Torque:490N.m
Main characteristics and Applications:
This drilling rig, HFT600ST Water Drilling Rig, has the features in best maneuver ability, compact construction, high integrity, economical transportation, simple operation, reliable transmission, etc.
Other applications as follow
- 1 It is equipped with the breakout-gun cylinder. After loosening the first turn of thread of the lock joint with the aid of breakout-gun cylinder, the drill pipe can be rotated in counter-clockwise direction by rotary table to reduce greatly the labor intensity and prolong service life of the component parts.
- 2 The drilling rig is equipped with a mud pump of changing-cylinder for construction.
- 3 The drilling rig is equipped with four jacks to reduce physical labor and improve the efficiency of installation.
- 4 To upgrade the versatility in application, standard parts and components. The drilling rig may be used for drilling in quaternary period stratum and matrix.
Main applications as follows
(1) Exploration and investigation of hydro-geological condition.
(2) Water well drilling for agriculture irrigation, industry and national defense.
(3)Ventilation of underground tunnel. HFT600ST can also be used in building engineering.
TECHNICAL DATA
| Power | BF6L913C 141KW/2500r/min | |
| Drilling Depth | 620m | |
| Diameter of hole | Open-hole 500mm | End hole 190mm |
| Drilling pipe | 89*9*6000mm 73*7*6000mm | |
| Max. Through hole diameter of rotary | 505mm | |
| Driving Kelly | 108*108*7315mm | |
| Effective height | 11m | |
| Rated load of hook | 25T | |
| Hoisting system | 3*4 | |
| Dimensions (in transportation state) (L*W*H) | 12000*2500*4230mm | |
| Total weight | 27T | |
| Max. Truck speed | 73Km/h | |
| Away angle | 13.5 | |
| Model | BF6L913C | 6135AN |
| Type | Air-cooling Diesel engine | Water-cooling Diesel engine |
| Liner size | 102*125mm | 135*150mm |
| Power | 141KW/2500r/ min | 100KW/1500r/ min |
| Max torque | 490N.m/1650r/min | 647N.m/1250r/min |
