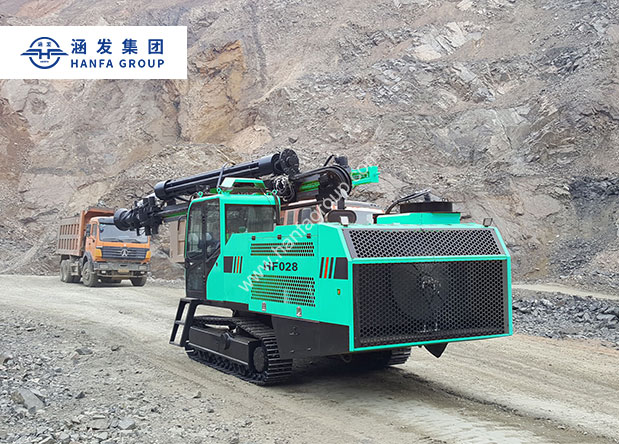

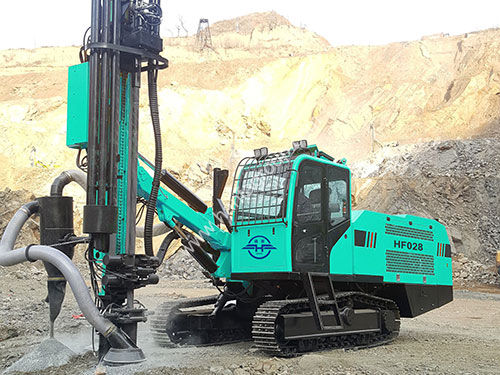

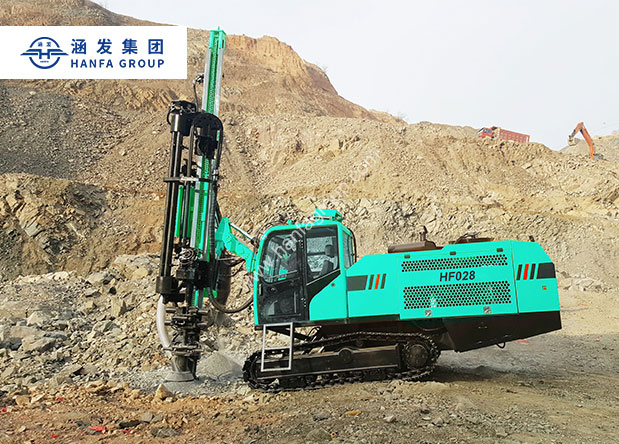

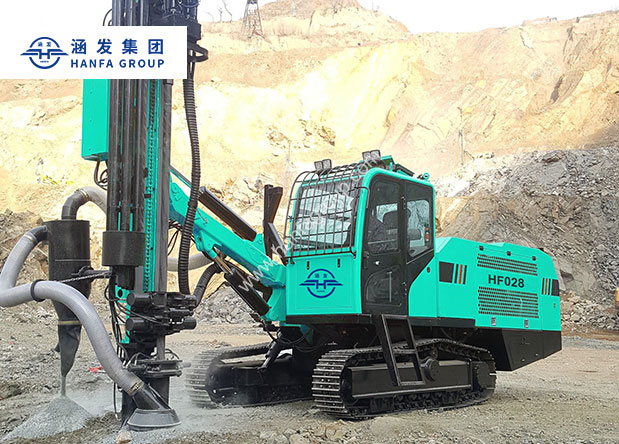

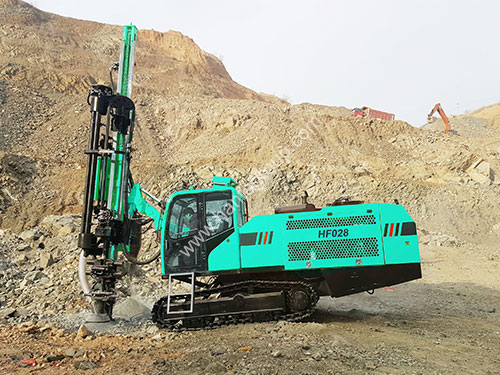

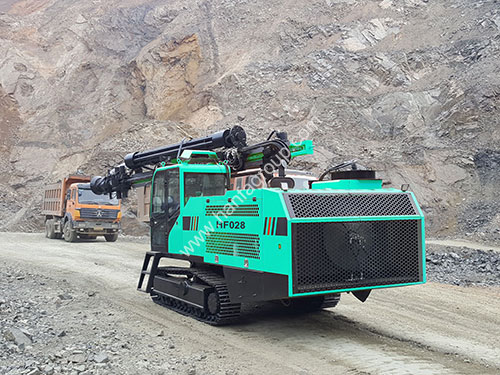

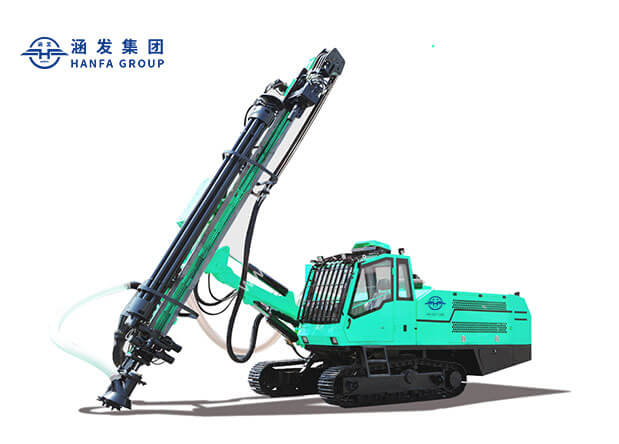

HF028 Full Hydraulic Integrated Downhole Drill
- Drilling Diameter: 90-160mm
- Drilling Depth:28m
- Engine Power:264kW/2100rpm
- Rotary Torque:3300N.m
product Introduction
HF028 integrated full hydraulic down-the-hole drilling rig is a product that can bring you higher automation and higher drilling efficiency, reliable operation and simple operation. Equipped with a cab and automatic rod changing system that meets FOPS requirements as standard, and widens the heavy-duty walking mechanism to meet the requirements of rapid movement while taking into account better safety. The hydraulic dust removal system can meet the new environmental protection requirements of the mine, and it is a modern green mine. Reliable solution.
Application
TECHNICAL DATA
| General | |
| Weight | 15000 kg |
| Length | 9920mm |
| Width | 2600 mm |
| Height | 3300 mm(Automatic pipe handling device is unloaded) |
| Drill pipe change | |
| Drilling diameter | 90-160mm |
| Dilling depth | 28m |
| Pipe diameter | 76mm |
| Pipe length | 4m |
| Pipe capacity | 6+1Piece |
| Hammer specs | 4"-5" |
| Air compressor | |
| Atas Cooco two-stage rotary screw air compressor | |
| Working pressure | 20bar |
| Max. FAD | 18.5m3/min |
| Feed | |
| Feeding stroke | 4840mm |
| Feed extension | 1100mm |
| Engine | |
| Model | QSL8.9-C360-30 |
| Type | Water-cooled six-cyinder EFl diesel engine |
| Rated power | 264kw/2100rpm |
| Fuel tank capacity | 450-500L |
| Rotary motor | |
| Rotation rate | 0-85rpm |
| Max. rotation torque | 3300Nm |
| Feeding method | Hydraulic motor +Chain |
| Feeding force | 12KN |
| Lifting force | 18KN |
| Undercarriage | |
| Track width | 350mm |
| Ground clearance | ≥400mm |
| Track oscillation | ±10° |
| Walking speed | 2/3km/h |
| Grade ability | 20° |
| Dust collector | |
| Collection method | Hydraulic dust collecting |
| The function can be customized according to the actual usage of the customer. | |
