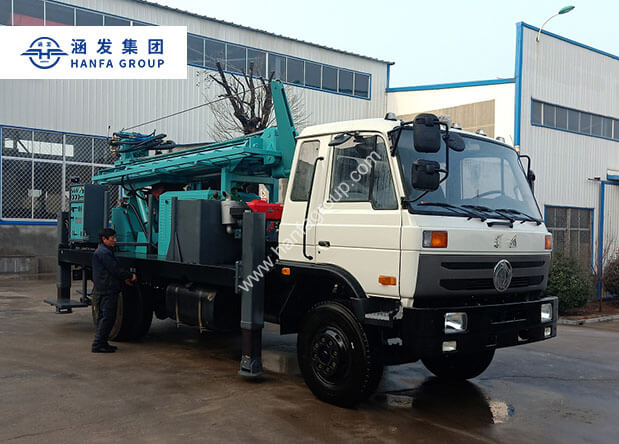

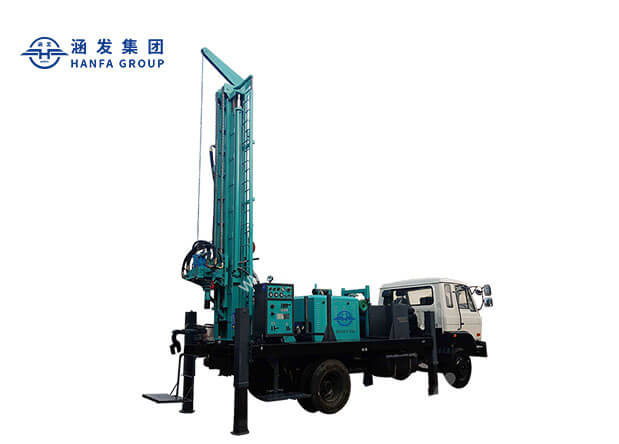

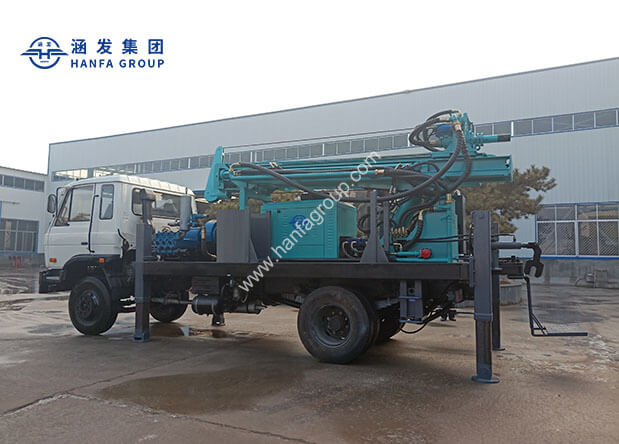

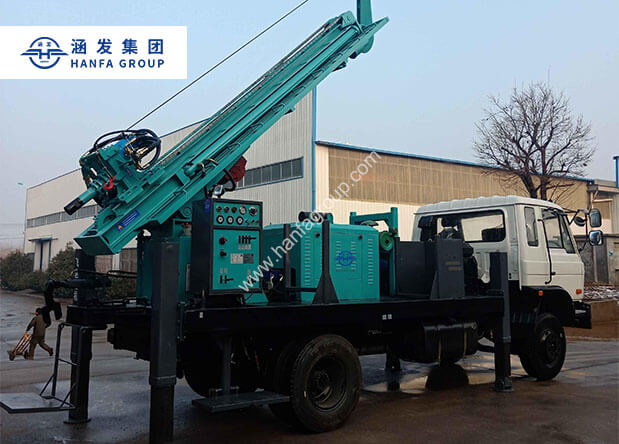

HFJ350K truck mounted drilling rig is designed by our engineers, it adopts truck mounted and is a rotary and DTH drilling rig, and it can drill on clay, sand and rock .
- 1HFJ350K truck mounted drilling rig is designed by our engineers, it adopts truck mounted and is a rotary and DTH drilling rig, and it can drill on clay, sand and rock .
- 2Easy operation, easy maintenance, whole drilling system install on heavy duty truck, it solves mountain, field work transport and lifting problems.
It is widely used in industrial and agricultural water conservancy engineering, wells and other exploration well hole, also can meet the engineering foundation reinforcement, loose sand and gravel strata with pipe drilling.
|Maximum rotational torque||6200~8500N·m|
|Maximum lifting force||24T|
|Once-time advamce length||6.6m|
|Walking speed||80 Km/h|
|Drill rod diameter||89mm/102mm|
|Total weight||15 ton|
|Dimensions||5200 x 2000 x 2780mm|
|Truck Chassis : DONGFENG|
|Diesel engine Model||Cummins|
|discharge standard||Euro II|
|Horse power||336 HP|
|Steering wheel||Left position|
