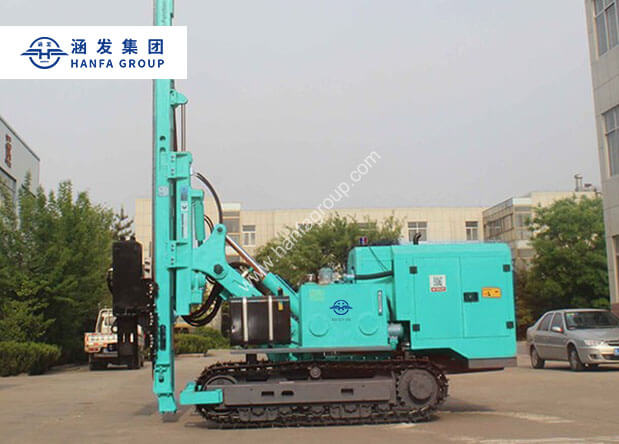

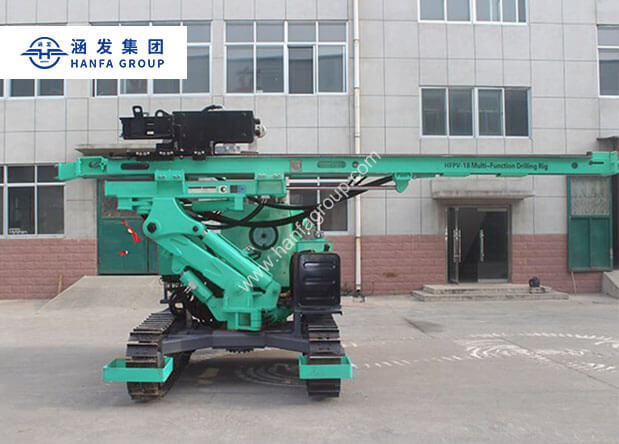

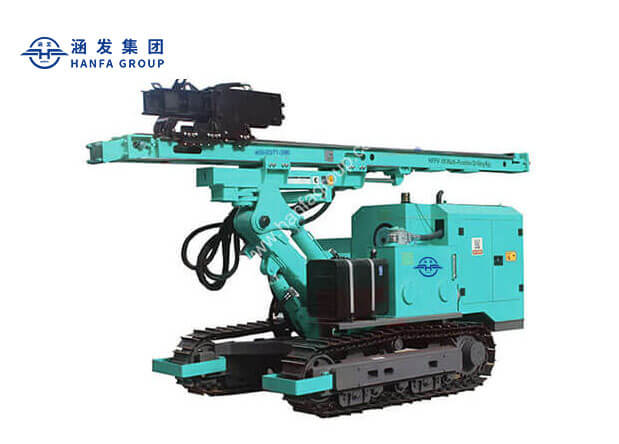

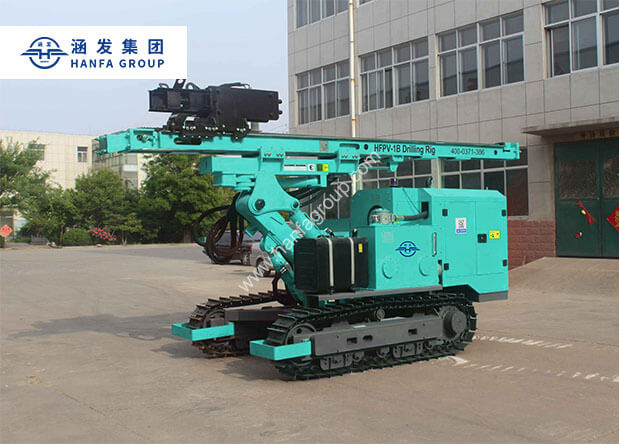

HFPV-1B Photovoltaic Solar Pile Drilling Rig
- Impact Frequency: 450-800bpm
- Work Pressure:130-150bar
- Impact:1000j
- Engine Power:88kW
product Introduction
HFPV-1B solar drilling rig, using new type of hydraulic technology, convenient for hole transfer. The drilling machine structure is compact,.while the mast has adjustable compensation function, when drilling, the mast supported on the ground, borehole stability is good. The machine hydraulic pressure can be adjusted according to different soil textures, so as to achieve the appropriate impact power for pile driving, it is a new type of pile driver.
Application
The drilling rig is mainly used in pile driving for photovoltaic Solar power station , pile driving for Highway guardrail, highway guardrail construction engineering construction, etc.
TECHNICAL DATA
| Impact frequency |
450--800bpm |
| Impact |
1000j |
| Work pressure |
130---150bar |
| Once promotion |
4100mm |
| Max. ramming length |
6000mm |
| Skid pitch |
95° |
| Boom swing angle |
110° |
| Boom pitch |
30° |
| Swinging angle of skid |
left and right total 40° |
| Host power |
88kW |
| Climb ability |
35° |
| Dimension(L*W*H) |
6240*2250*3000mm |
| Weight |
7350kg |
| Walk speed |
0--2.5km/h |
| Note: The Company’s products continued to improve, various design and technical specifications may change at any time, without any additional notice or obligation. |
|
