DS4 Rock Bolting Rig for Underground Mining and Tunnel Support with High Efficiency
- Turning Radius (mm)3360/7335~7790
- Weight (KG) 18500

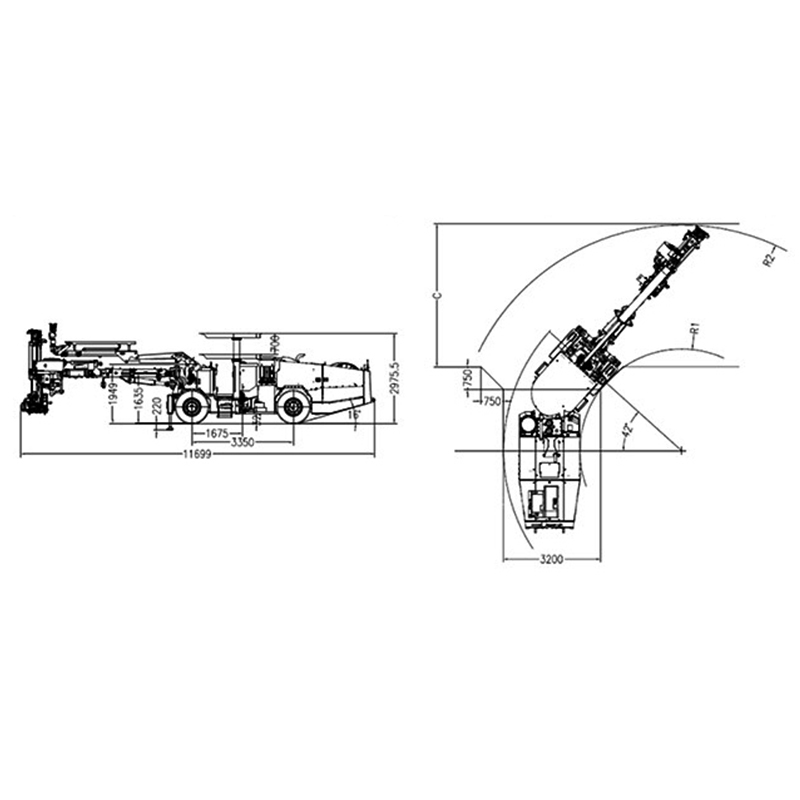

- Dimension:11942X2000X (2276/2976) mm
- Working Area:4.5X4.5–7X7m
product Introduction
The DS4 mining hydraulic anchor bolt drilling rig is a specialized anchor bolt trolley with independent anchor bolt and anchor bolt insertion arms. It is specifically designed for medium to large-scale mine anchor bolt construction. Depending on the construction requirements, users can choose from different functional heads, including pipe-seam type, resin type, and mortar anchor bolt heads.
Features
-
-
- 1.Dual-Boom Design: Covers both the roof and sidewalls simultaneously, improving full-section rock support efficiency.
- 2.Independent Mesh Handler: Provides precise and automatic control for meshing processes.
- 3.Stable Hydraulic System: Ensures precise control and reliable performance under demanding conditions.
- 4.High-Efficiency Operation: Enables efficient drilling, bolting, and meshing for rock support in underground mines.
-
Application
The anchor bolt insertion arms utilize two hydraulic rock-forming machines, one for drilling and the other for inserting anchor bolts. An anchor bolt magazine automates drilling and anchor bolt insertion. When using a resin anchor bolt head, a resin delivery system is included; when using a cement grout anchor bolt head, a cement grout mixing and delivery system is provided, integrating grout preparation and injection.
TECHNICAL DATA
| Core Components | Engine,Gearbox,Motor,Pump.Gear,Bearing,Pressure Vessel | Machinery Test Report | Provided |
| Warranty | 1Year | Video outgoing- inspection | Provided |
| Weight(KG) | 18500 | Place of Origin | Henan,China |
| Brand Name | HF | Product name | Bolting Rig |
| Model | DS4 | Dimension | 11942X2000X(2276/2976)mm |
| Working Area | 4.5X4.5--7X7m | Turning Radius (mm) | 3360/7335~7790 |
