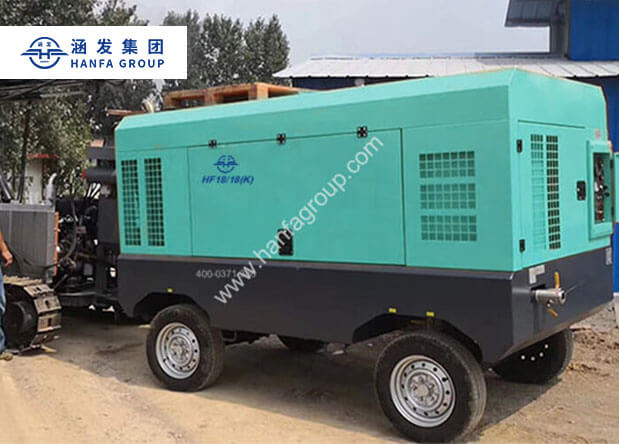

HF18/18(K) Mobile Screw Air Compressor
- Air Displacement: 18m³/min
- Air pressure:18bar
- Engine Power:194kW
- Weight:3700kg
Features
- 1KF bearing, direct drive, optimum structure, innovative design, low noise, environmental protection, easy maintenance.
- 2It is equipped with heavy-duty diesel engines such as Yuchai and Cummins. Achieve the best combustion state in the whole range of engine operation. The product has higher reliability, stronger power and better fuel economy.
- 3Efficient cooling system ensures that the compressor is always in the best operating state. The independent oil, water and air cooler is matched with the design of large-diameter fan to adapt to the severe cold and hot weather.
- 4Multiple air filtration systems effectively prevent the influence of harsh dust environment on the engine. The precision filter layer of the main air filter removes the remaining dust to ensure that the machine does not wear out. The safety filter element allows the machine to perform air filter maintenance without stopping and ensure the safe operation of the machine.
- 5The triple oil and gas separation system reduces the influence of too much or too little oil injection of the separator on the oil content of the compressed air, and always keeps the oil content of compressed air below 3 ppm. Clean compressed air is conducive to the safe operation of air-using equipment.
- 6The microcomputer control system has a friendly and intuitive interface. It displays operating parameters of operating speed, air supply pressure, oil pressure, exhaust temperature, coolant temperature, and fuel level, and with function of self-diagnosing faults, alarms and shutdown. Simple operation ensures the safe operation of unattended machines.
- 7Optional low temperature starting system. The water pump of the fuel heater draws the coolant in the engine body to the heat exchanger. The oil pump draws the fuel in the fuel tank to the burner and burns. Through the continuous circulation of heat, the temperature of the coolant, the whole machine and the lubricating oil is continuously increased, ensuring the starting performance of the diesel engine in severe cold and plateau environments.
- 8Adopt 10u precision lubricating oil filter, ensuring minimum wear of moving parts. Multiple fuel filter devices protect the reliability of the engine fuel injection system.
- 9The large-diameter air intake valve minimizes the air intake resistance, and the air volume is 0-100% stepless adjustment.
- 10The high-strength suspension chassis ensures the walking safety and moving speed of the unit in various harsh construction environments.
Application
TECHNICAL DATA
| Model |
HF18/18(K) |
| Air displacement |
18m³/min |
| Air pressure |
18bar |
| Engine power |
194kw |
| Exhaust interface |
G2x1, G3/4x1 |
| Weight |
3700kg |
| Dimension |
3600x1600x2220mm |
