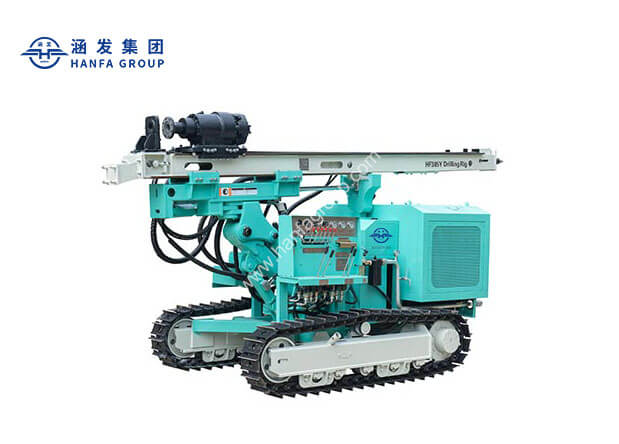

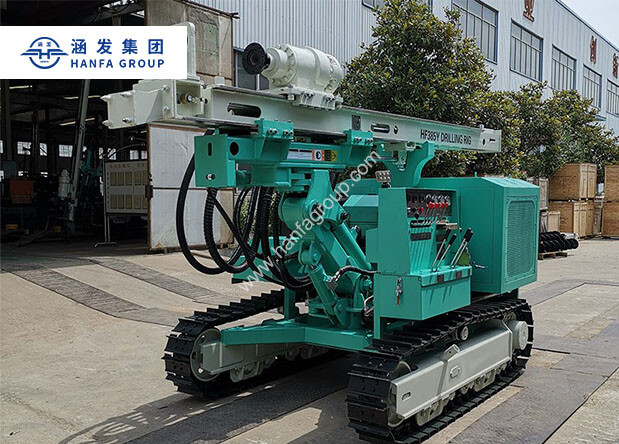

HFPV-600 Photovoltaic Solar Pile Drilling Rig
- Drilling Diameter: 90-400mm
- Drilling Depth:20-120m
- Engine Power:92kW
- Rotary speed:0-110r/min
Introduction
Machine hydraulic pressure can be adjusted according to different soil texture, so as to achieve the appropriate impact force of pile driving, is a new type of pile driver.The mast has adjustable compensation function, when drilling, the mast is supported on the ground, and the drilling stability is good.
-
- 1Using new type of hydraulic technology,low consumption,large rotary torque,convenient hole deflection.
- 2The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling,the mast supported on the ground,borehole stability is good.
- 3The drilling rig is mainly used for piling anchor,water Wells,photovoltaic solar spiral pile,DTH blasting construction,etc.
Video
Application

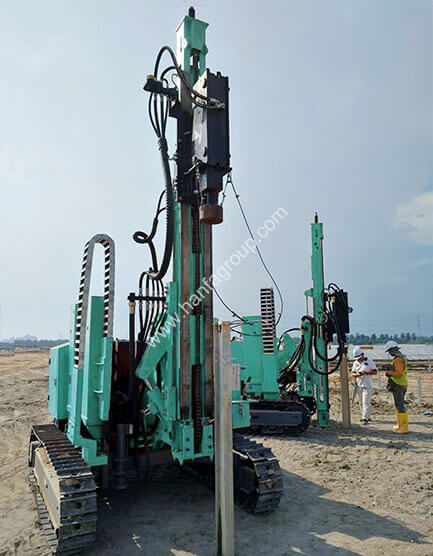

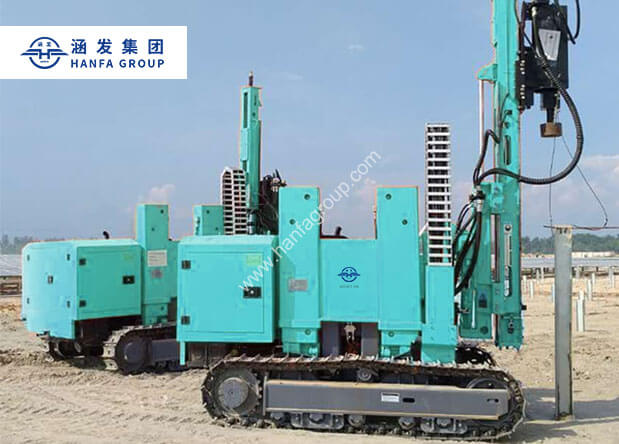

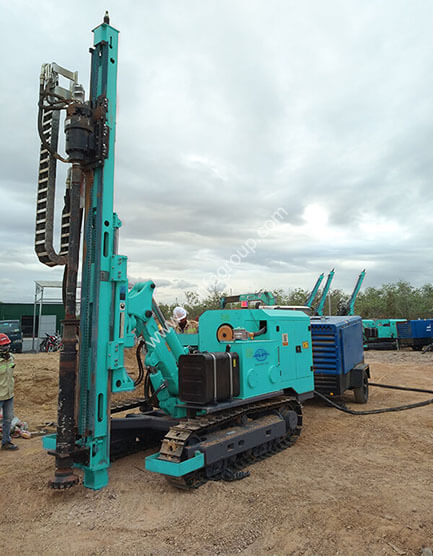

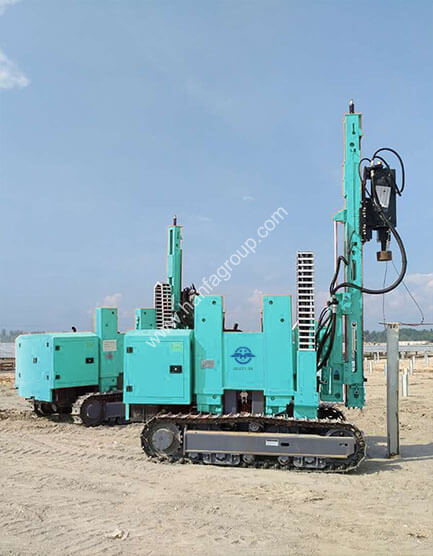

The drilling rig is mainly used for piling photovoltaic solar power plants, highway guardrail piling, highway guardrail construction engineering construction, etc.
TECHNICAL DATA
| Bore diameter(hammer) | 90-400mm | Bore depth | 20-120m |
| Air consumption | 10-26m³/min | Air pressure | 0.7-1.6Mpa (medium) 1.6-2.46Mpa (high) |
| Pipe diameter | 76mm/89mm/102mm | For rock | F=6-20 |
| Bore diameter(screw) | Max 400mm | Bore depth | 0-30m |
| Screw pipe diameter | 130-400mm | Once promotion | 3200mm |
| Skid pitch | 120º | Swinging angle of drilling boom | Left and right total 50º |
| Swinging angle of skid | Left and right total 40º | Rotation speed | 0-110r/min |
| Host power | 93Kw/WC92Kw | Climb ability | 35º |
| Dimension(L*W*H) | 5300*1970*2620mm | Weight | 5800kg |
