HFD-C underground water detector

Max. Depth: ≤4000m
Measurement Mode:MN/TT
Measuring Range:±5V
Sampling Time:40-9000s

product Introduction

Automatic imaging: The 10-inch Android system touch screen intelligently generates 2D, 3D and curved images in real time.

Accurate and stable: Solve the shortcomings of inconsistencies and changes in the intensity of natural electromagnetic field sources, and the accuracy is greatly improved.

Three screen intercommunication: the instrument screen, mobile phone screen, computer screen intercommunication.

Intelligent and flexible: 1-14 channels are optional, and an electromagnetic probe can be selected for TT probe measurement mode, and it also supports wireless connection to find water golden hoop.

The 16-channel real-time imaging water-finder is a real-time imaging intelligent water-finder jointly developed with the Guilin Institute of Hydrology and Geological Exploration. It uses 16-channel simultaneous input measurement to obtain a stable field source, which not only solves the problem of natural electric field changes at any time , And avoid the error caused by moving the electrode multiple times in the same profile, which solves the shortcoming of the repeated measurement data profile of the single-channel instrument.

The 16-channel real-time imaging water finder comes standard with 10.1-inch Android system touch screen real-time imaging, and the instrument screen, mobile phone screen, and computer screen are interoperable. 1-14 measurement channels can be selected, and wireless probes or water search can be optional The hoop rod can switch the measurement mode of MN electrode and TT probe, and the field operation is very convenient, which is generally recognized by customers.

Application

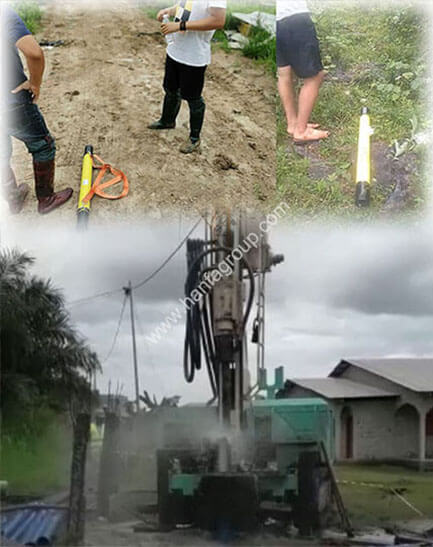

To determine the location, depth, and water yield of groundwater, to guide operations such as well drilling and water extraction, and to improve the success rate of well drilling. Detailed survey and general survey of regional hydrogeology.

TECHNICAL DATA

Model Single channel 16 channels 32 channels
Maximum depth(m) ≤600 ≤3000 ≤4000
Optional depth(m) 100/200/300/400/500/600 100/200/300.../3000 100/200/300.../4000
Channel input 16 channels input at the same time, the maximum electrode spacing is 2.5m 32 channels input at the same time, the maximum electrode spacing is 5m
Channel selection 1-14 1-30
Depth layering 10-80 40-160
Connection method Serial port, Wifi, Bluetooth 4.0, USB (optional 4G communication)
Display screen 7-inch IPS wide-angle 178° visibility 10.1 inch IPS wide-angle 178° visible touch screen (1024x600)
operating system Android6.0.1
CPU ARM Cortex-A7 (AD24 bit 1Msps) ARM Cortex-A7 8-core CPU 2.0Hz running memory 1G memory 8G (expandable 128G)
Main function Optional depth, real-time 2D/3D drawing, removable battery Optional depth, optional number of channels, real-time 2D/3D drawing, removable battery
Measurement mode MN/TT
Measuring range ±5V
Frequency Range(HZ) 15-80KHZ 1-8k/0.01-6k 0.001-7k
Frequency selective filtering Preset frequency selection and intelligent frequency selection, analog + data filtering 1-16 times overlay optional
Resolution 0.1mV±5% 0.01mV±3%/0.01mV±2% 0.01mV±3%/0.01mV±1%
sampling time(s) 40-280 60-3600/120-5400 120-7200/160-9000
Battery power consumption 600mA/H 800mA/H 900mA/H
Host weight 2.3kg 2.6kg 3kg
