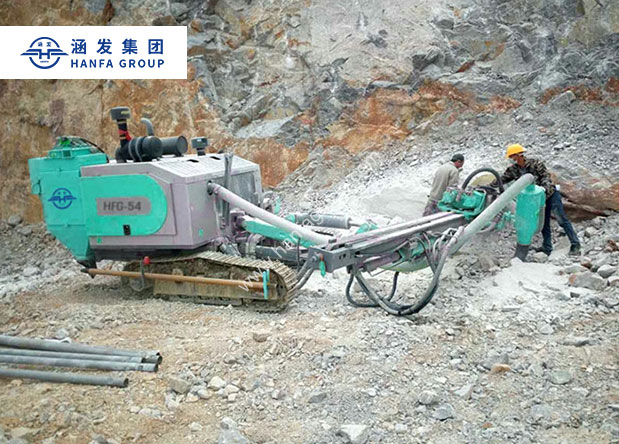

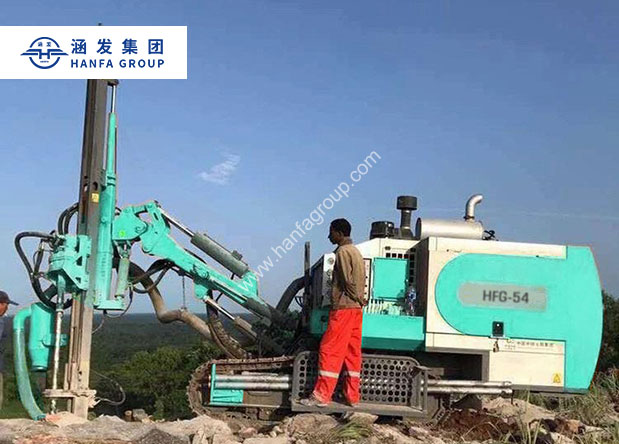

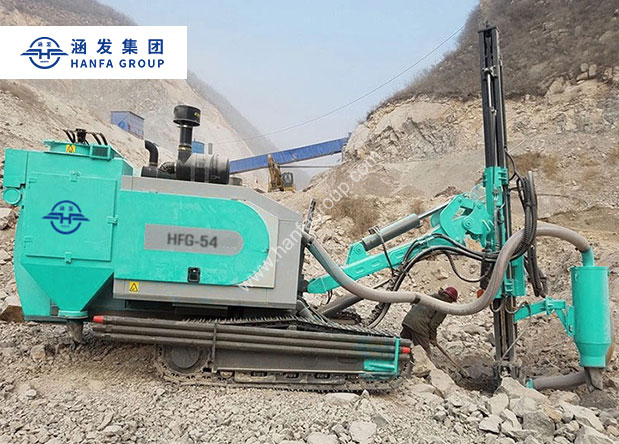

HFG-54+ Integrated DTH Drilling Rig

Drilling Diameter: φ80-127mm(φ80-138mm)
Engine Power:Cummins 194kW
Rotary Torque:2479N.m


  • 1 Using its single power to drive the screw air compressor and the hydraulic system of the drilling rig at the same time, compared with the split drilling rig, the comprehensive fuel consumption is 35% energy saving, and the maintenance cost is reduced by 50%
  • 2The core hydraulic components are imported from Europe. The reliable hydraulic system greatly reduces the workload of system maintenance and is convenient and practical
  • 3Powerful two-speed hydraulic walking mechanism, strong off-road capability, high-torque slewing motor can easily deal with stuck pipe
  • 44.The two-stage dry dust collector is environmentally friendly and also helps to improve production efficiency; integrated technology solves the problems of engineering and mine air compressor movement and remote management.



Engine brand: Cummins Fuel tank capacity:420L
Engine model: 6BTA8.3-C260 Impactor: 4”
Engine rating: 194KW Exhaust air volume: 150m3/min
Emission standards: meet Euroll Exhaust torque: 2479Nm
Working wind pressure:17 Bar Drill rod length: 3000mm(open hole drill 2000mm)
Aperture range: 108~127mm Propulsion method: cylinder chain
Number of storage rods:6 Advance stroke:3200mm
Deep hole: 20m Maximum pulling force:40KN
Total length of propeller: 5340mm Driving force: high speed 45kN, low speed 71kN
Propulsion compensation:1200mm Ground clearance:360mm
Maximum propulsion: 21kN Height: 2800mm
Walking speed: high speed 3km/h, low speed 2km/h Width: 2500mm
Maximum climbing ability: 25° Length:7100mm
Track frame swing:+-14° Weight(without optional accessories): 6850kg
