HFGA-65+ Automatic Top Hammer Surface Drill Rig
- Drilling Diameter: 60-102mm
- Drill Pipe Specifications:T38(T45)x3660mm
- Engine Power:119kW
- Traveling Speed:1.3-3.5km/h
Features
- 1The crawler leveling device makes the center of gravity more stable and the crawler adhesion stronger.The protection design of braze bin and cab can eliminate the hidden danger of personnel safety.
- 2The drilling rig can excavate multiple rock holes at one time with its flexible drilling arm and off-road function, which can meet the drilling requirements of various primitive landforms.
- 3Equipped with high frequency hydraulic drill, the unit energy consumption of drilling rig is unmatched competitiveness.

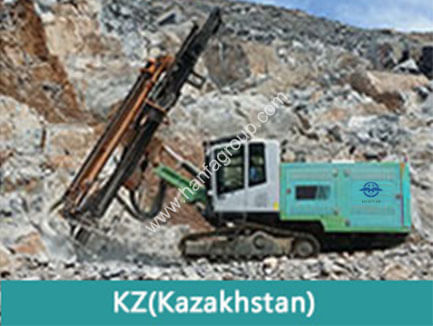

Application
TECHNICAL DATA
|
General parameters |
|
|
Model |
HFGA-65+ |
|
Drilling diameter |
64-102mm |
|
Drill pipe specifications |
T38(T45)x3,660mm |
|
Max. impact power |
15kW |
|
Engine |
cummins 119kw |
|
Propelling force/lifting force |
20kN/20kN |
|
Number of bit changer and rod holder |
4 + 1 (automatic) |
|
Exhaust air |
4.7m3/min |
|
The largest wind pressure |
8.5bar |
|
Maximum climbing ability |
25° |
|
Swing Angle of crawler frame |
±10° |
|
High and low walking speed |
high：3.5km/h low：1.3km/h |
|
Weight |
11,200kg |
