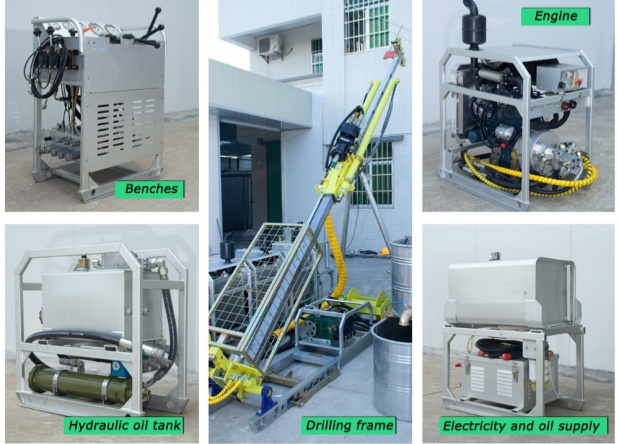

HFP600 Plus+ Portable Hydraulic Core Drill Rig
- Drilling Diameter: 96/75.7/60mm
- Drilling Depth:160/460/800m
- Engine power: 4×23.5kW
- Rotational torque:650N.m
Introduction
The HFP600 Plus+ is the most powerful of the HFP series of portable full hydraulic core drilling rigs, mainly used for drilling at depths of 500-800m. Designed for inaccessible areas and complex formations, with good portability and great power, it can even quickly drill through extremely fractured formations using mud formulated with the HANFA series.
1. Equipped with original and customized manual Parker multi-way directional valves to ensure precise control.
2. Equipped with independently developed hydraulic modular valve block, so the hydraulic system is highly integrated and reliable.
3. The engine is remotely controlled to ensure easy operation.
4. Equipped with a proprietary three-cylinder bracket that can directly pass through the inlet drill pipe with diameters P, H, N and B.
Features
-
- 1 Lifting capacity by 30%.
- 2 ptimize the hydraulic system, operating station, tank and module.
- 3 Improved work area.
- 4 Brand new rod frame, higher strength, wider application range, easier adjustment, stronger adaptability..

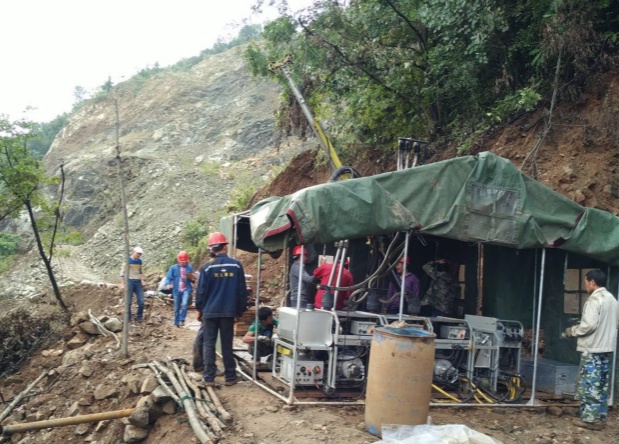

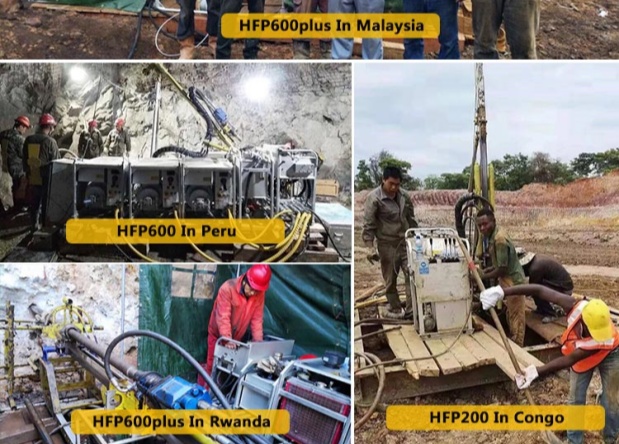

Product Applications
Technical parameters
| Drilling capacity | HTW/NTW/BTW drill pipe length 1.5M, drilling angle 45°-90° | 200/460/800m |
| Drill hole diameter | 96/75.7/60mm | |
| Coring diameter | 71/56/42mm | |
| Rig power | Japan's Kubota turbo diesel engine 3×33kW/3000rpm | |
| Top-drive power head | Maximum torque/maximum speed | 800N.m/1500rpm |
| Giving progression/lifting force/feeding force | 1.83m,50kn/30kn(Double cylinder force) | |
| Form & Weight | Machine area/number of modules | 4m×4m×5m/13PCS |
| Heavyest module/gross weight | 180kg/1500kg | |
