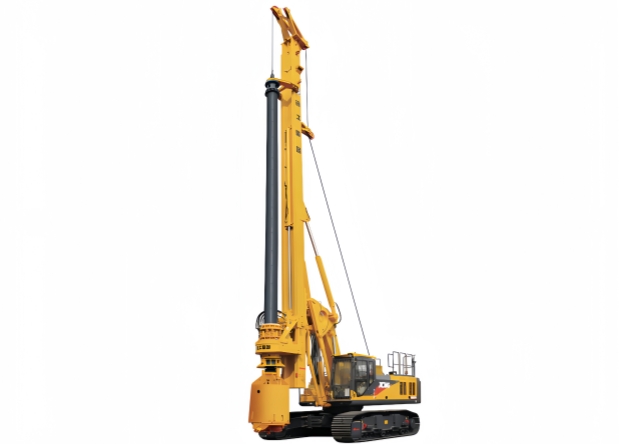

HFR138 Rotary Drilling Rig
- Drilling Diameter: 1500mm
- Drilling Depth:Machine lock 36-40m
- Engine Power:123kW
- Max. Output Torque:140KN.m
TECHNICAL DATA
| Model |
HFR138 |
HFR138C |
|
| Brand | Cummins | Cummins |
|
| Engine | Rated power |
123kw |
123kw |
| Rated speed |
2000r/min |
2000r/min |
|
| Power head |
Maximum output torque |
140KN.m |
140KN.m |
| Speed |
0-38 |
0-38 |
|
| Maximum hole diameter |
1500mm |
1500mm |
|
| Maximum borehole depth |
Machine lock 36m |
Machine lock 40m |
|
| Pressure oil cylinder |
Maximum pressure |
120KN |
120KN |
| Maximum lifting power |
120KN |
120KN |
|
| Maximum stroke |
3100mm |
3100mm |
|
| Primary winding |
Maximum lifting power |
140KN |
140KN |
| Maximum winch speed |
55m/min | 55m/min |
|
| Wire rope diameter |
26mm |
26mm |
|
| Deputy winding |
Maximum lifting power |
50KN |
50KN |
| Maximum winch speed |
30m/min |
30m/min |
|
| Wire rope diameter |
16mm |
16mm |
|
| Mast inclination |
lateral |
±4° |
±4° |
| Lean forward |
5° |
5° |
|
| Drill pipe |
4 * 10 355 machine lock |
4 * 11 355machine lock |
|
| Chassis |
Maximum walking speed |
2km/h |
1.8km/h |
| Maximum turning speed |
3r/min |
3r/min |
|
| Chassis width |
3000mm |
2850-3900mm |
|
| Track width |
600mm |
600mm |
|
| Track grounding length |
3474mm |
3867mm |
|
| Hydraulic system | Pilot pressure |
3.9Mpa |
3.9Mpa |
| Work pressure |
32Mpa |
32Mpa |
|
| Working quality of the machine |
36000kg |
42000kg |
|
| External dimensions |
Working condition L * W * H (mm) |
7500*3000*15800mm |
7500*3900*16200mm |
| Cargo status L * W * H (mm) |
12250*3000*3520mm |
12250*2900*3520mm |
|
| Whether to transport with a rod or not |
yes |
yes |
|
