MS4 Bolting Rig High Productivity Safe Operation for Mining Rock Reinforcement
- Cable bolt length (m):25
- Weight (KG) :17730
- Dimension:9815x2080x2725 mm
- Cement Hose Reel:40 m capacity
product Introduction

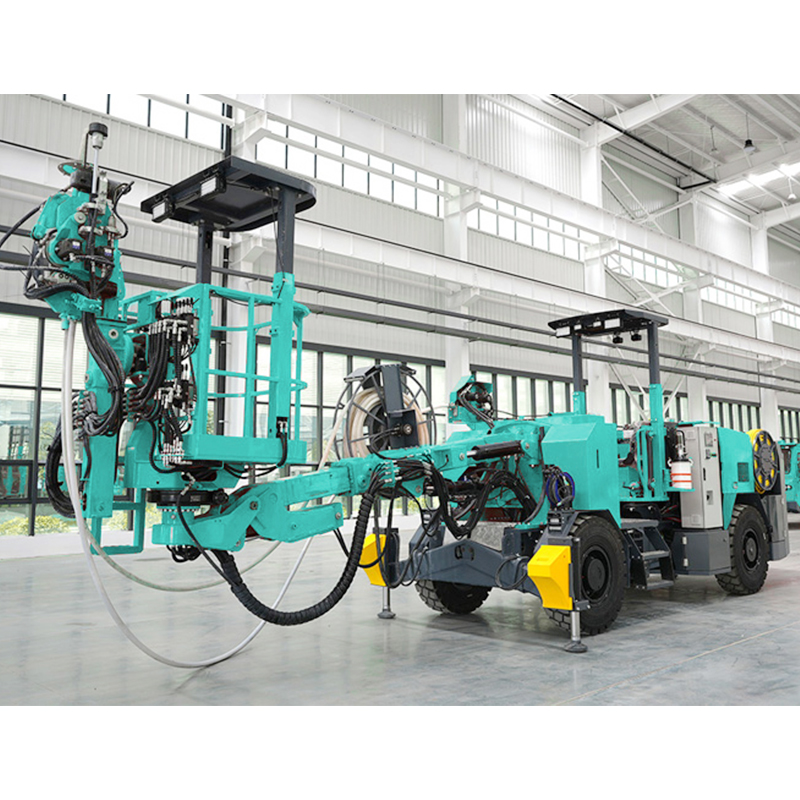

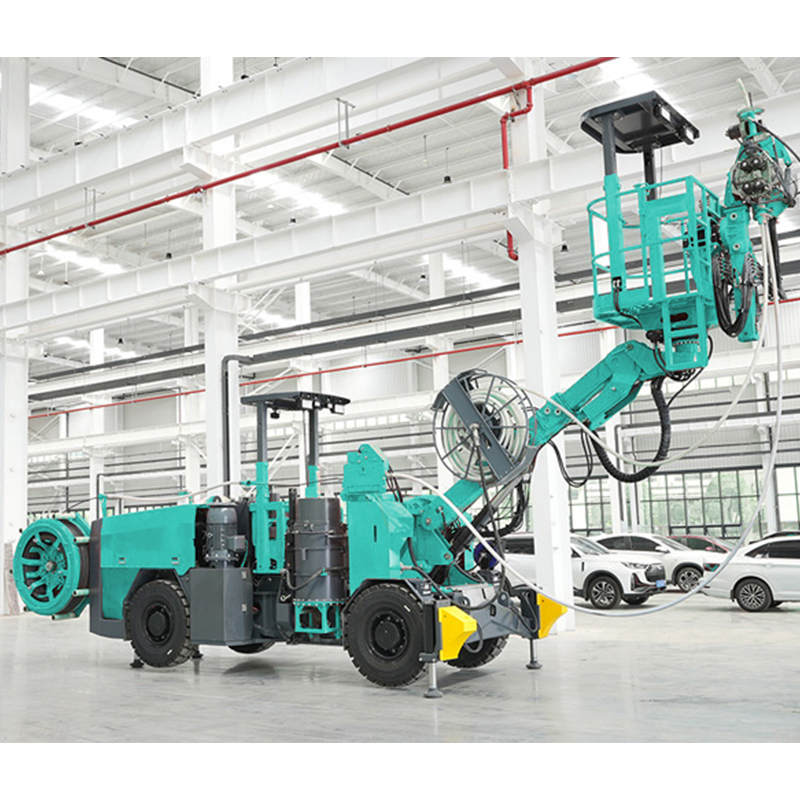

MS4 cable bolting rig is designed for cable bolt installation and grouting support to reinforce and stabilize large rock masses in underground mining. The rig is suitable for drifts with cross-section ranging from 3.5×3.5 m to 7×7 m. The fully mechanized cable bolting rig can install cable bolts up to 25 m in length. With its integrated design, MS4 cable bolter significantly enhances operational efficiency and reliability in underground rock support work.
Features
-
-
- 1.Safety First Siton always takes the operator safety as a top priority. The canopy is certified to FOPS and ROPS standards, providing reliable protection for operators in demanding underground environments. The SAHR braking system ensures safe and reliable parking under all conditions. In addition, a reversing alarm system is installed to further enhance operational safety during tramming and maneuvering.

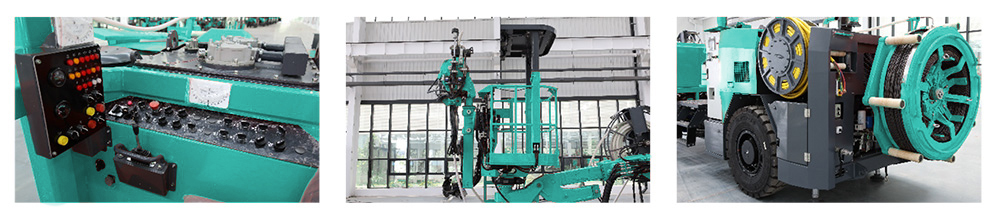

- 2.Cable Bolting System Equipped with a new-generation cable bolting head, this powerful bolting equipment enables integrated operations of automatic cable feeding, bending, and cutting, significantly reducing manual intervention and improving efficiency and accuracy. The cable roll has a storage capacity of up to 775 m of bolting cable with a diameter of 15.2 mm. A basket-type working platform is equipped with this cable bolting drill rig, providing operators with a convenient and safe space for cable bolting.
- 3.Grouting System This rock reinforcement drill rig is equipped with a high-power hydraulic plunger pump and an upgraded grouting system, achieving a grouting speed of up to 0.45 m³/h. The mining cable bolter also features automatic grouting, hose feeding, and hose retracting functions. The bolting machine has a cement silo with a dry cement capacity of 210 L. This design significantly enhances grouting efficiency and construction quality. In addition, the system is equipped with a screw-type air compressor to ensure sufficient air pressure, reliable ground support and long-term stability.
- 4.Chassis MS4 underground cable bolter features fully enclosed wet axles, enhancing safety and efficient braking. Its 89kW diesel engine, articulated chassis, and four-wheel drive ensure excellent maneuverability, superior traction, and stability in rugged underground conditions.
-
Application
The MS4 is a cable-stayed trolley used for installing cable-stayed anchors and grouting support in underground mine roadways. Its design features excellent visibility and balance, coupled with powerful four-wheel drive and an articulated chassis, ensuring fast, safe, and flexible operation in narrow, level tunnels.
TECHNICAL DATA
| Model No. | MS4 |
| Main Information | |
| Dimension(mm*mm*mm) | 9815x2080x2725 |
| Weight(kg) | 17730 |
| Electrical Motor Power(kW) | 37 |
| Diesel Engine Power (kW) | 89 |
| Cable Bolting System | |
| Cable bolt length(m) | 25 |
| Cement Hose Reel | 40m capacity |
| Grouting System | |
| Pumping Capacity(m³/h) | 0.45 |
| Cement Silo Volume(L) | 210 |
| Chassis | |
| Max.Tramming Speed(km/h) | 20 |
| Max.Climbing Ability (degree°) | 20 |
