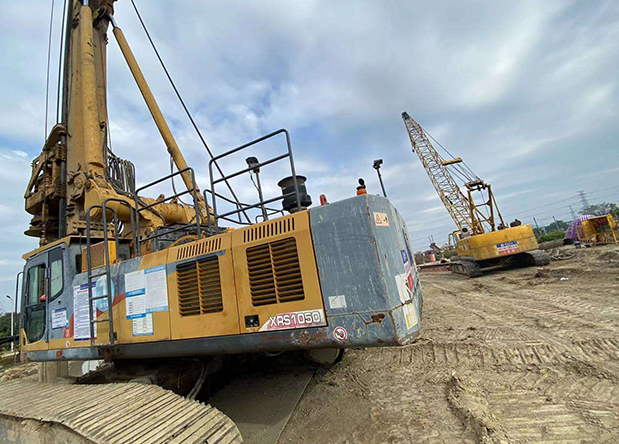

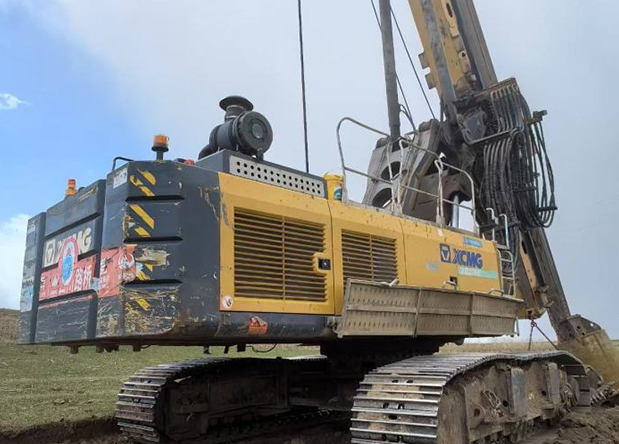

XR240ES/XR360ES Used Rotary Drilling Rig
- Drilling Depth:7000mm
- Drilling Diameter:2000mm/2200mm
- Engine Power:270KW
- Rotary Torque:2400N.m
- Model:XR160L/XR200E/XR320E/XR350EH/XR400E/XR700EII/XR800E
Introduction
XR240ES rotary drilling rig is a multi-functional machine that can quickly switch between functions such as cylinder pressurization, winch pressurization, pipe twisting machine, long spiral, and dual power heads to meet more different engineering construction needs.
| Type | Crawler Rotary Drilling Rig |
| Model | XR160L / XR200E / XR240ES / XR320E / XR350EH / XR360ES / XR400E / XR700EII / XR800E |
| Condition | Well-Maintained, Properly Operated |
| Chassis | New / Old |
| Year of Manufacture | 2022 / 2023 |
Features
-
- 1 One machine with multiple functions, which can realize the rapid switching of functions such as cylinder pressurization, winch pressurization, pipe rolling machine, long spiral, and dual power heads to meet more different engineering construction needs.
- 2 Equipped with Isuzu electronically controlled turbocharged engine, it has lower fuel consumption and convenient and fast service.
- 3 The working performance of the power head and main winch is improved by 20%, and the operating efficiency is higher.
- 4 The power head can be equipped with a torque multiplier (optional), the casing drive torque reaches 360kN•m, and the casing lowering ability is stronger.
- 5 The main and auxiliary winches both use single-row rope technology, and the wire rope life is 2~4 times longer than that of multi-layer ropes, and the use cost is lower.
- 6 It adopts a large parallel quad with double boom The side-shaped variable-length mechanism has a large support angle, a support range increased by 16%, and more stable operation.
- 7 The main hydraulic system adopts negative flow control technology, which has fast response and good control performance.
- 8 The high-power temperature-controlled independent hydraulic oil cooler meets the construction in high-temperature areas, and the fan speed can be adjusted with temperature changes to achieve energy saving.
- 9 The intelligent control system realizes the functions of automatic adjustment and display of the verticality of the drill mast, automatic rotation, automatic soil dumping, automatic lifting and pouring of long spiral construction method, and pile type display. The bus panel design is adopted to prevent misoperatio.
- 10 The chassis can be equipped with transport legs (optional), remote control operation, and transportation and transfer are simpler and safer.

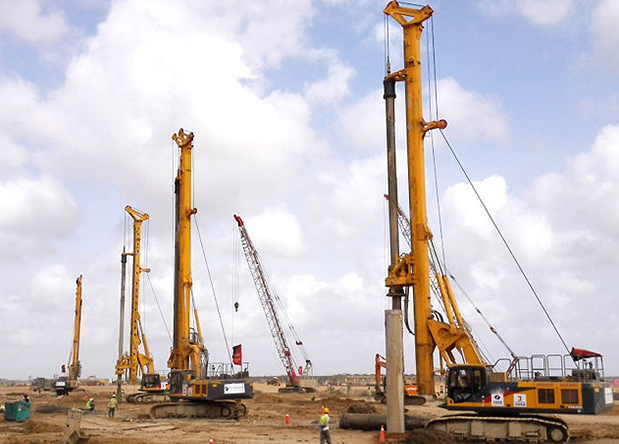

Product Applications
We're here to help: Easy ways to get the answers you need
-
-
-
-
-
-
-
-
-
</div
Technical parameters
| Model | XR240ES | XR360ES |
| Engine | ||
| Model | 6UZ1X | TAD1353VE |
| Rated power (kW) | 270 | 2345 |
| Rated speed (r/min) | 2100 | 2100 |
| Machine parameters | ||
| weight(kg) | 84000 | 115000 |
| Overall dimensions(mm) | 17525×3250×3594 | 10870×4900×25820 |
| Power head output torque (kN·m) | 240 | 2360 |
| Power head speed (r/min) | 7~30 | 6~27 |
| Maximum drilling depth (mm) | 80000 | 10300 |
| Drilling diameter(mm) | 2000/2200 | 2300/2600 |
| Chassis parameters | ||
| Maximum walking speed (km/h) | 1.8 | 1.3 |
| Maximum climbing grade (°) | 35 | 35 |
| Minimum ground clearance (mm) | 468 | 468 |
| Track width(mm) | 800 | 800 |
| Track gauge(mm) | 3500～4400 | 3500～4900 |
| Ground pressure (Kpa) | 90 | 90 |
| Pressurized cylinder | ||
| Maximum pull-out force (kN) | 220 | 220 |
| Maximum pressure (kN) | 210 | 210 |
| Pressure cylinder stroke (mm) | 5000 | 5000 |
| Main winch | ||
| Maximum lifting force(kN) | 240 | 240 |
| Maximum hoisting speed (m/min) | 70 | |
| Wire rope diameter (mm) | 30 | 30 |
| Auxiliary winch | ||
| Maximum lifting force(kN) | 80 | 80 |
| Maximum hoisting speed (m/min) | 70 | 70 |
| Wire rope diameter (mm) | 20 | 20 |
| Mast inclination | ||
| Sideways(°) | 4/4 | 4/4 |
| Forward tilt (°) | 5 | 5 |
