Deep Water Well Drilling Rig full hydraulic control HFX Series
HFX series deep (water) well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency.
5.0
Drilling Diameter:
420-500mm
Drilling Depth:
420-2100m
Engine Power:
92-405kw
Rotary Torque:
3300-31500N.m
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Description
HFX series deep (water) well drilling rig uses full hydraulic control, and the Top drive to drive the rotation of drilling tools with very high drilling efficiency. Reasonable overall layout uses the tractor-mounted or full ground chassis for transportation with good maneuverability. Very flexible in difficult roads and can be widely used in many fields such as resource exploration of hydrology wells, coal bed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
The top-mounted driving head principal shaft has a great drift diameter, suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands for well-drilling at different terrain strata.
Product Characteristic
Mature and reliable hydraulic top drive power head with large bearing capacity and good sealing effect. The gap adjustable telescopic drill collar can meet the requirements of long casing construction and has high work efficiency4Integrated visualization pressurize and pressurize and pressurize decompression feed system for fine adjustment of drilling pressure according to drilling depth.
Four hydraulic high supporting legs are provided to achieve rapid leveling of the rig without lifting.Technical Data
| Type | HFX400 | HFX800 | HFX1300 | HFX2100 | ||
| Drilling capability | Driling depth | m | 400(∅89) | 800(∅89) | 1300(∅89) | 2100(∅114) |
| Max. diameter of working floor | mm | ∅330 | ∅500 | ∅500 | ∅610 | |
| Feeding system | Max. lifting capacity | KN | 200 | 360 | 600 | 1000 |
| Max.feeding capacity | KN | 80 | 150 | 160 | 260 | |
| Max.lifting speed | m/min | 32 | 32 | 31 | 43 | |
| Max.feeding speed | m/min | 60 | 60 | 45 | 50 | |
| Stroke | mm | 6600 | 7000 | 7000 | 15200 | |
| Top drive | Max.torque | N.M | 8300/41500 | 14500/7250 | 20000/10000 | 31500/21000 |
| Speed | r/min | 60/160 | 75/150 | 70/140 | 105/155 | |
| I.D | mm | ∅45 | ∅55 | ∅105 | ∅105 | |
| Floating distance | mm | / | / | 60 | 100 | |
| Max.tilting angle | ° | / | / | / | 85 | |
| Deck engine | Type | YC4A125-T300 | YC6J210-T300 | YCA08260-T301 | TAD1650VE | |
| Rated power | kw | 92 | 154 | 191 | 405 | |
| Main winch | Hoisting capacity | / | 30(Optional) | 42 | 42 | |
| Tool winch | Hoisting capacity | KN | 15 | 15 | 15 | 15 |
| Breakout device | Max.breakout torque | KN | / | / | / | 95000 |
| vise clamping range | N.M | / | / | / | 2-7/8" ~ 10-6/8" | |
| Foam pump | Max. flow | mm | 35(Optional) | 35(Optional) | 50 | 50 |
| Max. pressure | L/min | 18(Optional) | 15(Optional) | 21 | 21 | |
| Mud pipe | I.D | mm | ∅51 | ∅51 | ∅76 | ∅76 |
| Max. pressure | Mpa | 8 | 8 | 15 | 21 | |
| Chassis | Drive mode | Mpa | Crawler chassis | Crawler chassis | Crawler chassis | Crawler chassis |
| Rated power | kw | / | / | / | / | |
| High speed | km/h | 2.9 | 2.2 | 2 | 3 | |
| Max.climbing gradient | % | 39 | 39 | 39 | 39 | |
| Working dimension(L*W*H) | mm | 4280 x 3130 x 9300 | 5036 x 3575 x 9970 | 6450 x 3290x 13020 | 8800 x 4500 x 22090 | |
| Transportation dimension(L*W*H) | mm | 5800 x 1800 x 2400 | 6280 x 2250 x 2925 | 12700 x 2250 x 3030 | 14400 x 3000 x 3600 | |
| Weight | t | 9 | 13.7 | 22 | 47.5 | |
| HFX Series 700m The latest Water Well Crawler Drilling Rig/water well drilling rig portable | ||||||

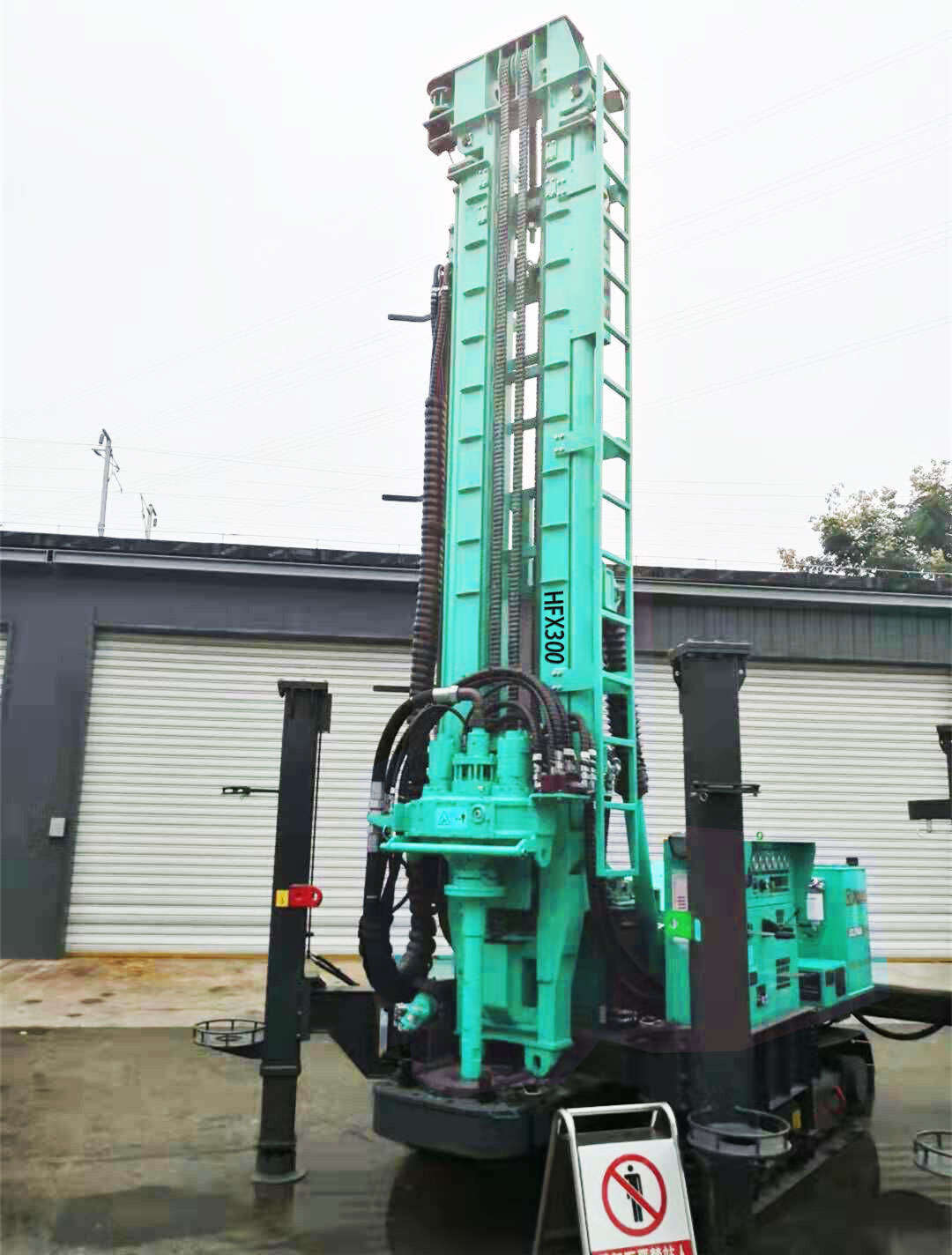

Product Display
